RTFL BLACKBOX LOG Oxy 5 20240915 070659-P3


Helicopters • Airplanes • Drones • Builds • Repairs • Consulting • 3D Printing
  03/04/2026: @ 08:00: page updated
<< Back
Model: Oxy_5 Profile: Profile 3 Date: 09/15/2024 Time: 07:06
PID Settings for this trial:

AxisProportionalIntegralDerivativeFeedforward
ROLL 45 160 40 75
PITCH 50 160 90 85
YAW 140 70 30 30
GOV10 130 5 10

Comments:

  • Profile2
  • Note the aileron oscillation increase with this high D-Term.

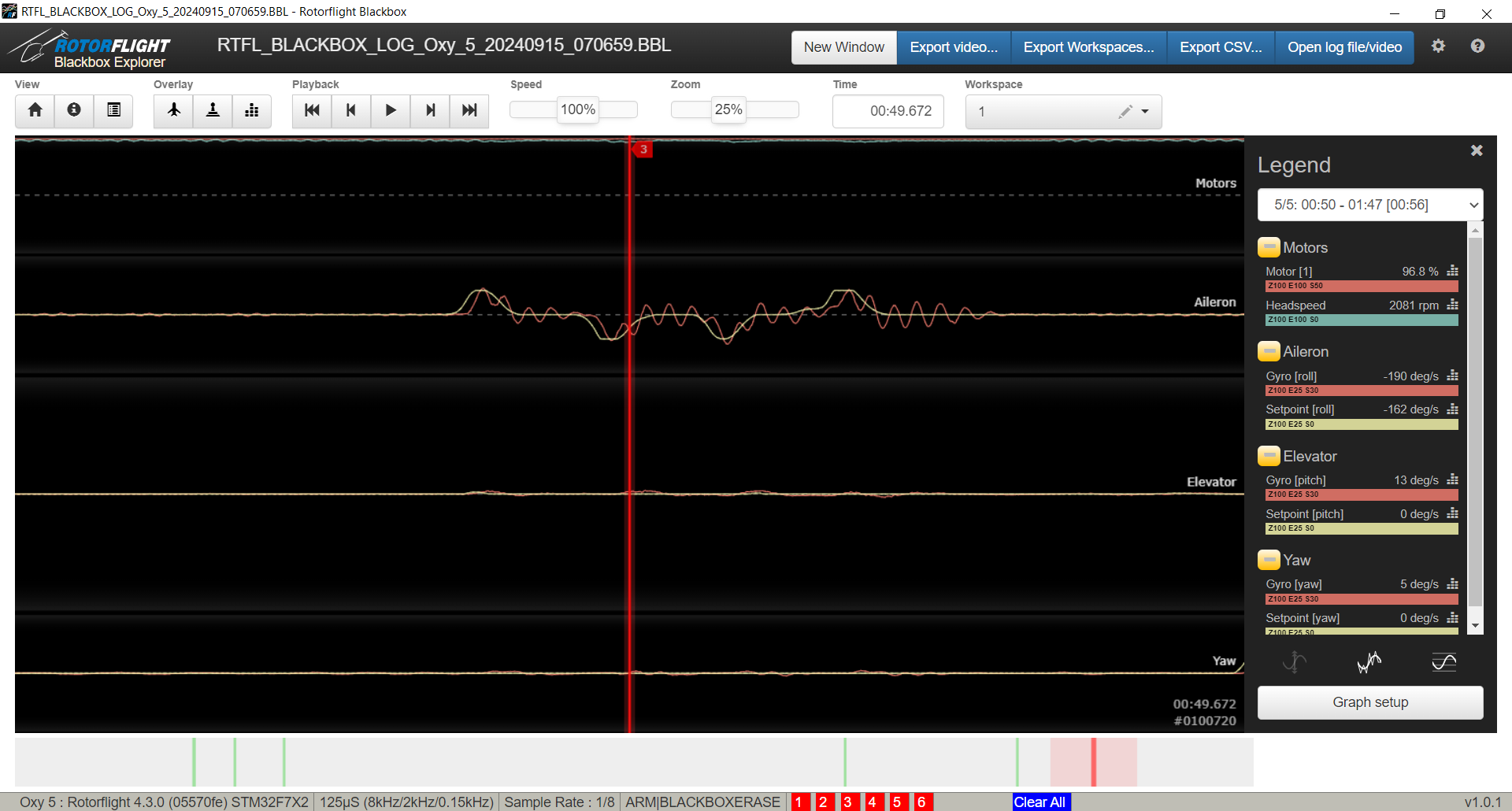

    		• Blackbox Log (Click to Enlarge):
