Model: Oxy_5 Profile: Profile 1 Date: 09/15/2024 Time: 07:06
PID Settings for this trial:

AxisProportionalIntegralDerivativeFeedforward
ROLL 45 160 5 75
PITCH 50 160 90 85
YAW 140 70 0 30
GOV10 130 5 10

Comments:

  • Profile1
  • Note the aileron oscillation will increase as we bring up D-Term.

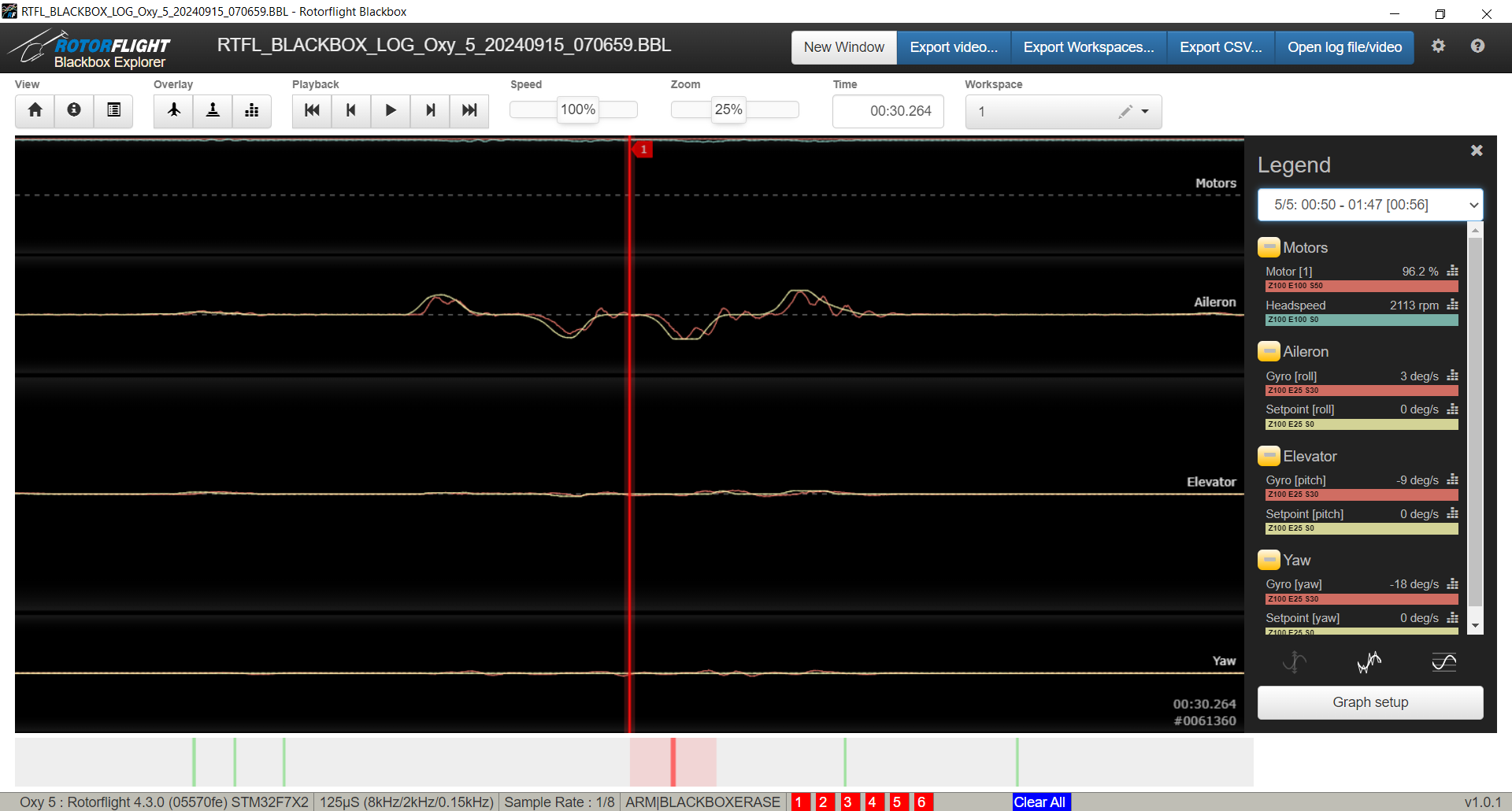

    		• Blackbox Log (Click to Enlarge):
