Model: Oxy 5
Date: 9/13/2024
Time: 9:05am
PID Settings for this trial:

AxisProportionalIntegralDerivativeFeedforward
ROLL 65 170 0 85
PITCH 50 170 90 85
YAW 120 70 12 25
GOV10 130 5 10

Comments:

  • This is the profile tuned by LOS, BB, and PIDBench
  • Very good and precise/accurate profile
  • FF may be a little low after comparing to P3

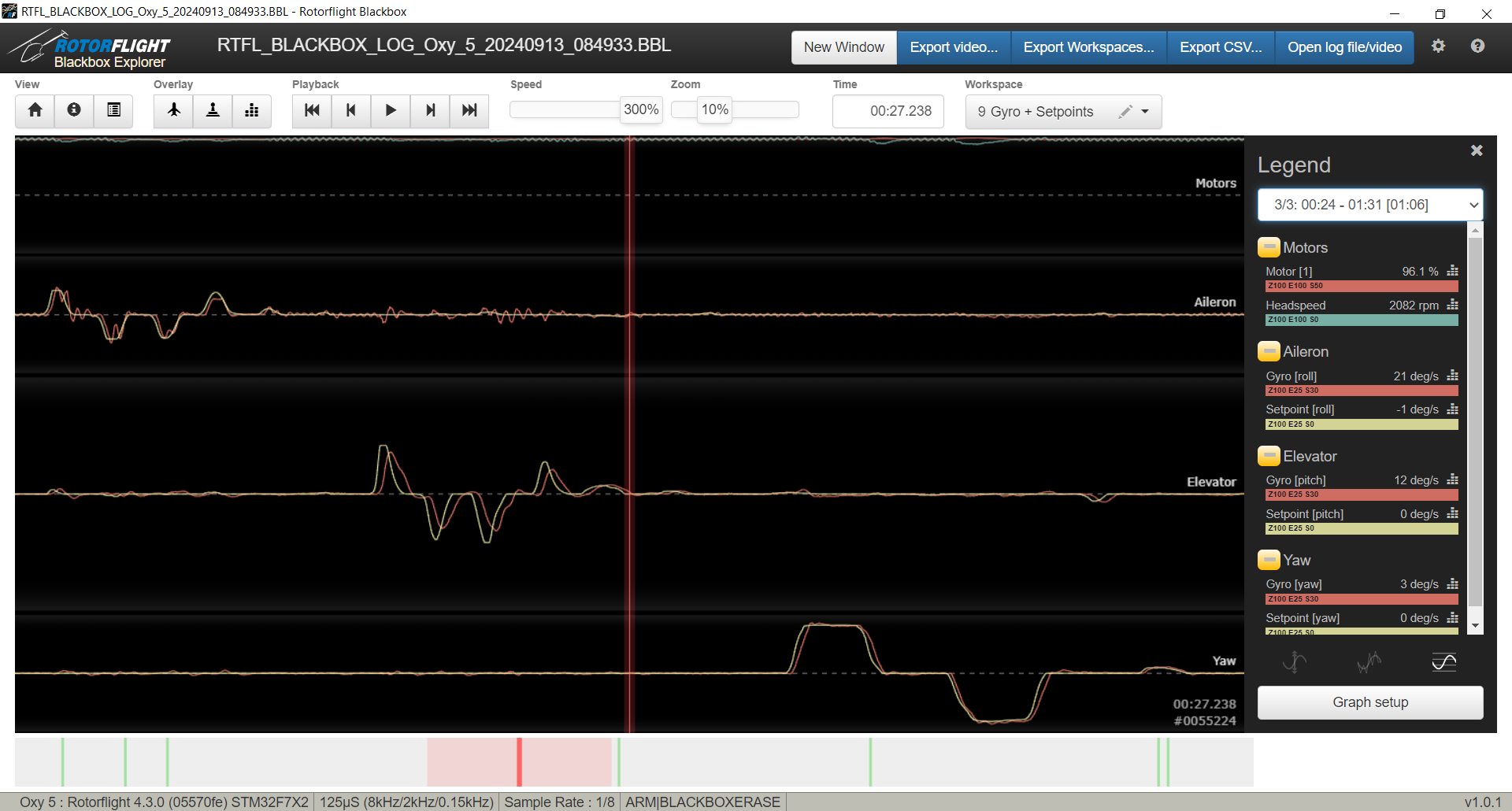

    		• Blackbox Log (Click to Enlarge):
