Model: Oxy_5 Date: 09/12/2024 Time: 12:07
PID Settings for this trial:

AxisProportionalIntegralDerivativeFeedforward
ROLL 65 170 0 85
PITCH 50 170 90 85
YAW 120 70 12 25
GOV10 130 5 10

Comments:

  • This is a good Blackbox trace of a very good flying model.
  • Still some remaining oscillations on Aileron and Elevator as well as Motor.

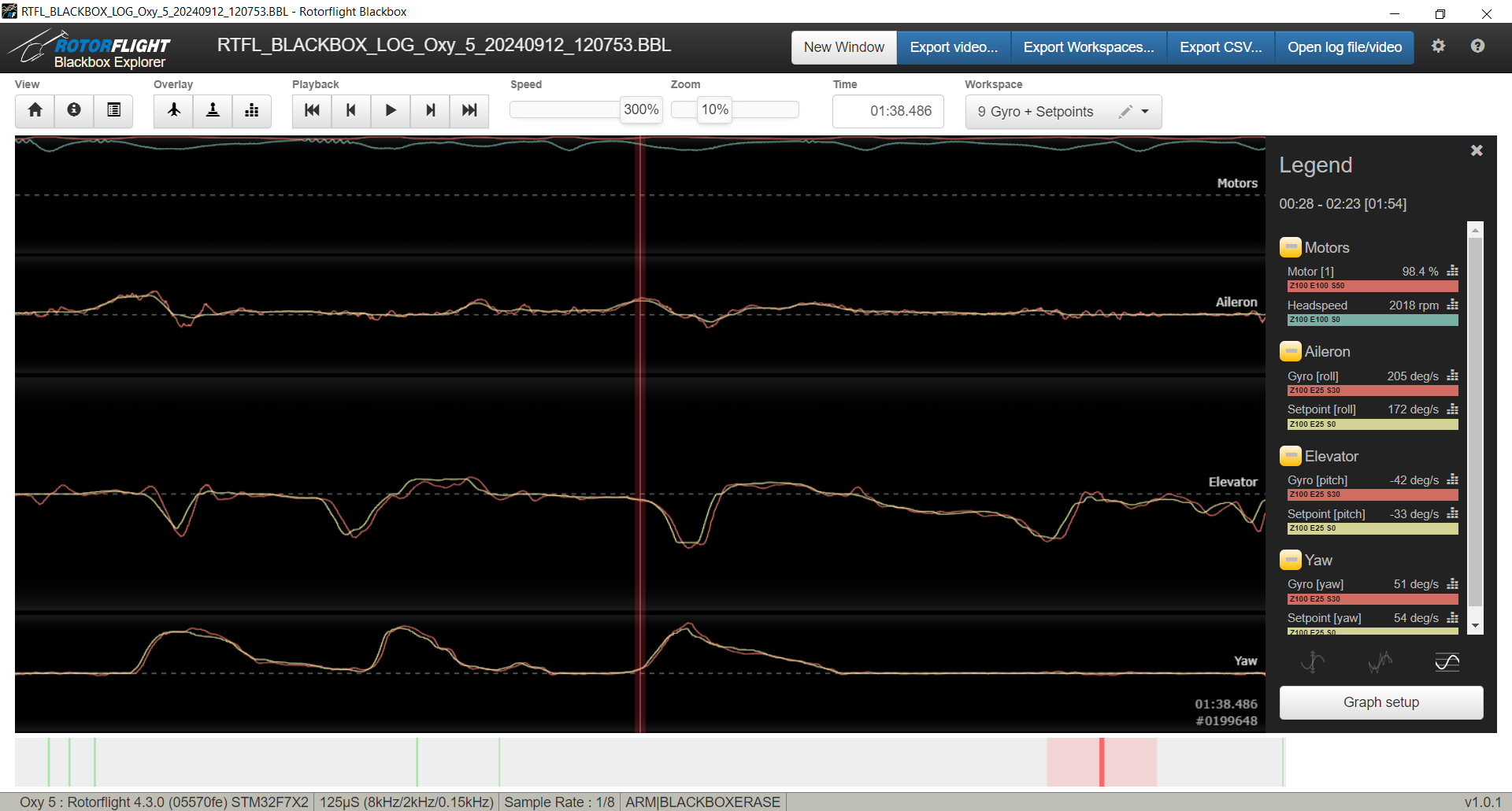

    		• Blackbox Log (Click to Enlarge):
