RotorFlight: Installation Guide & Notes (UNDER CONSTRUCTION)
Author: Bert B. Magbanua                                                           Date: Mar 19 2024

  1. URL & Resource locations (Website, Repository, Docs, Etc)
  2. DL Software, Backing up configs, Updating FW
  3. Installation of board & orientation
  4. Failsafe / Binding, Configuring & Linking Rx
  5. Installing & Configuring Servos
  6. Installing & Configuring ESC/Motor & Arming
  7. Linking fctns (ie; PID/rates) to TX switches
  8. PID Tuning
  9. Z

Intro:

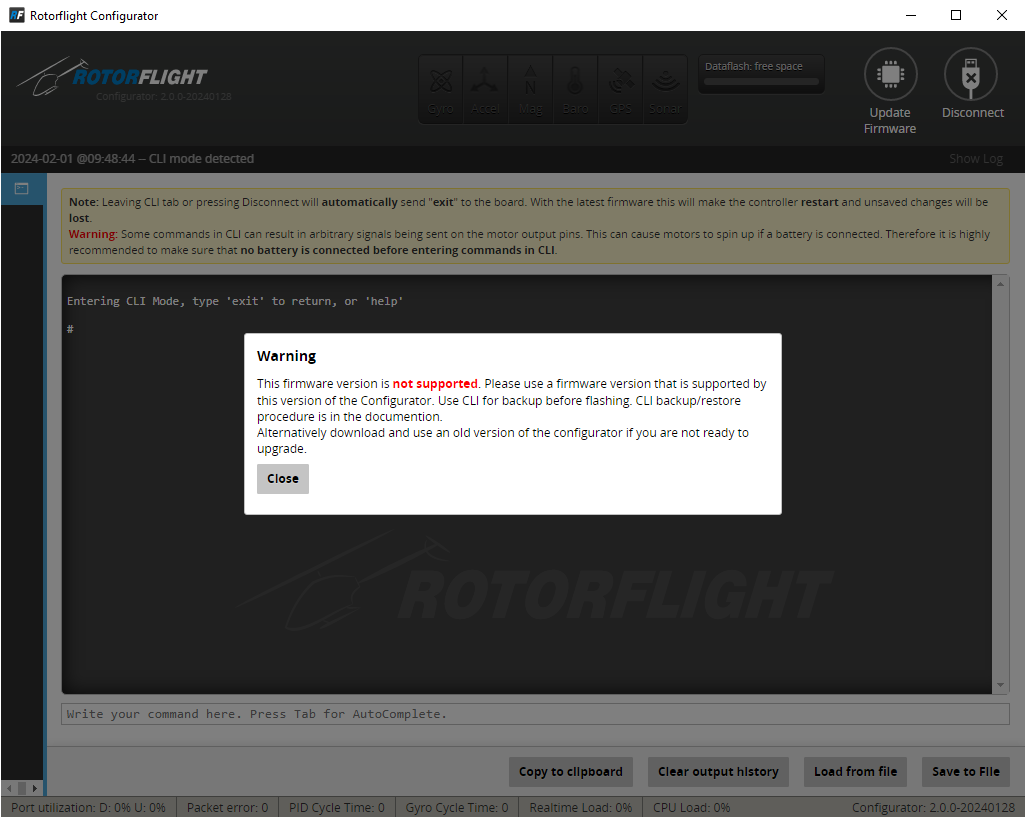

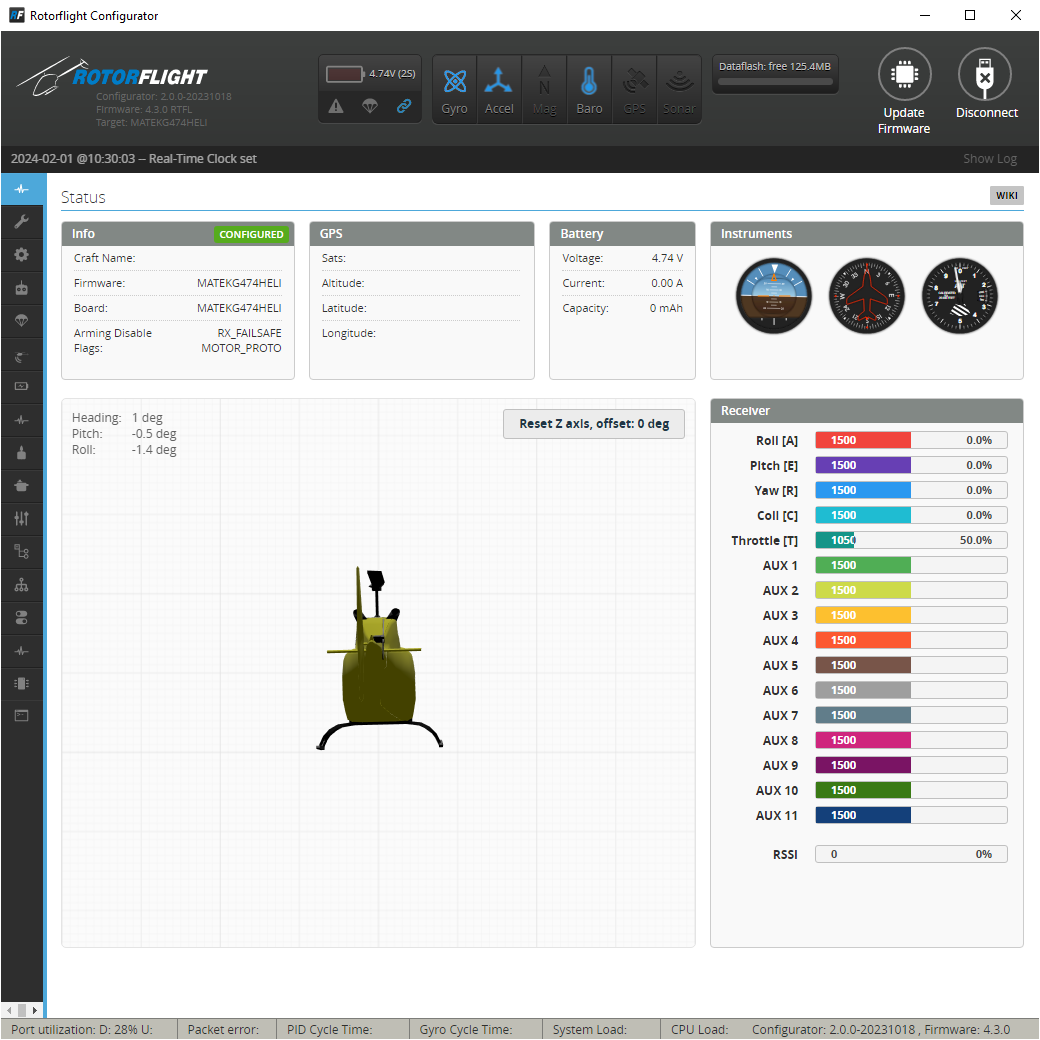

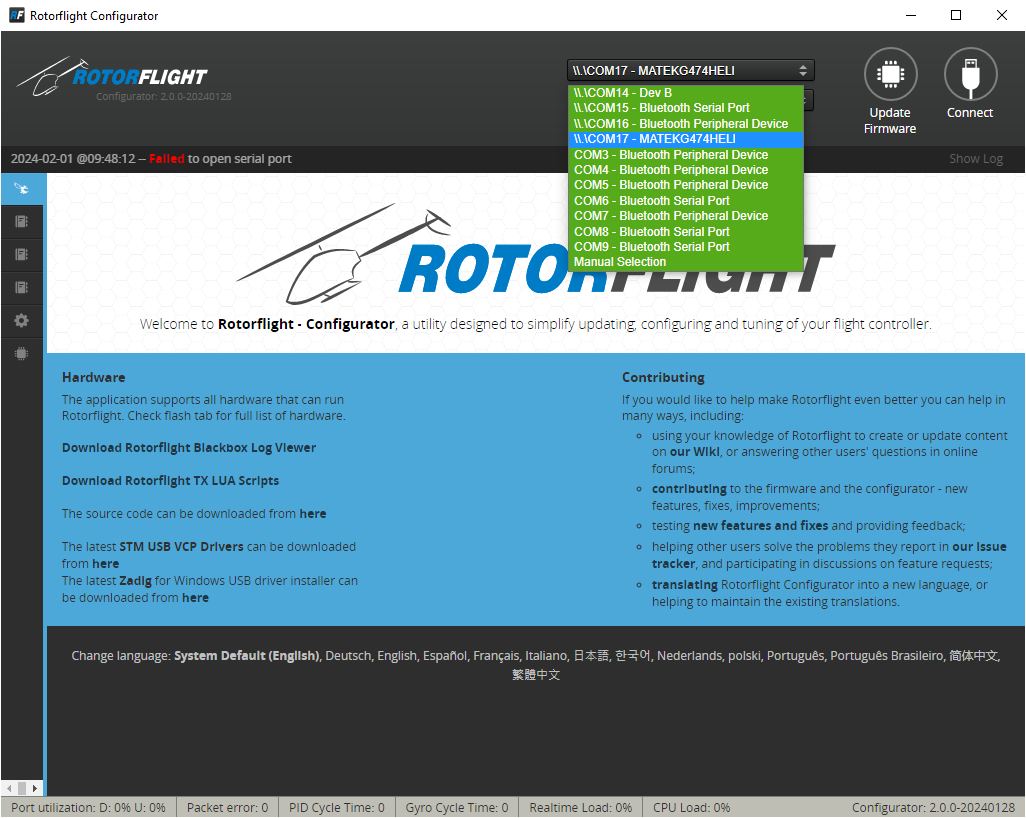

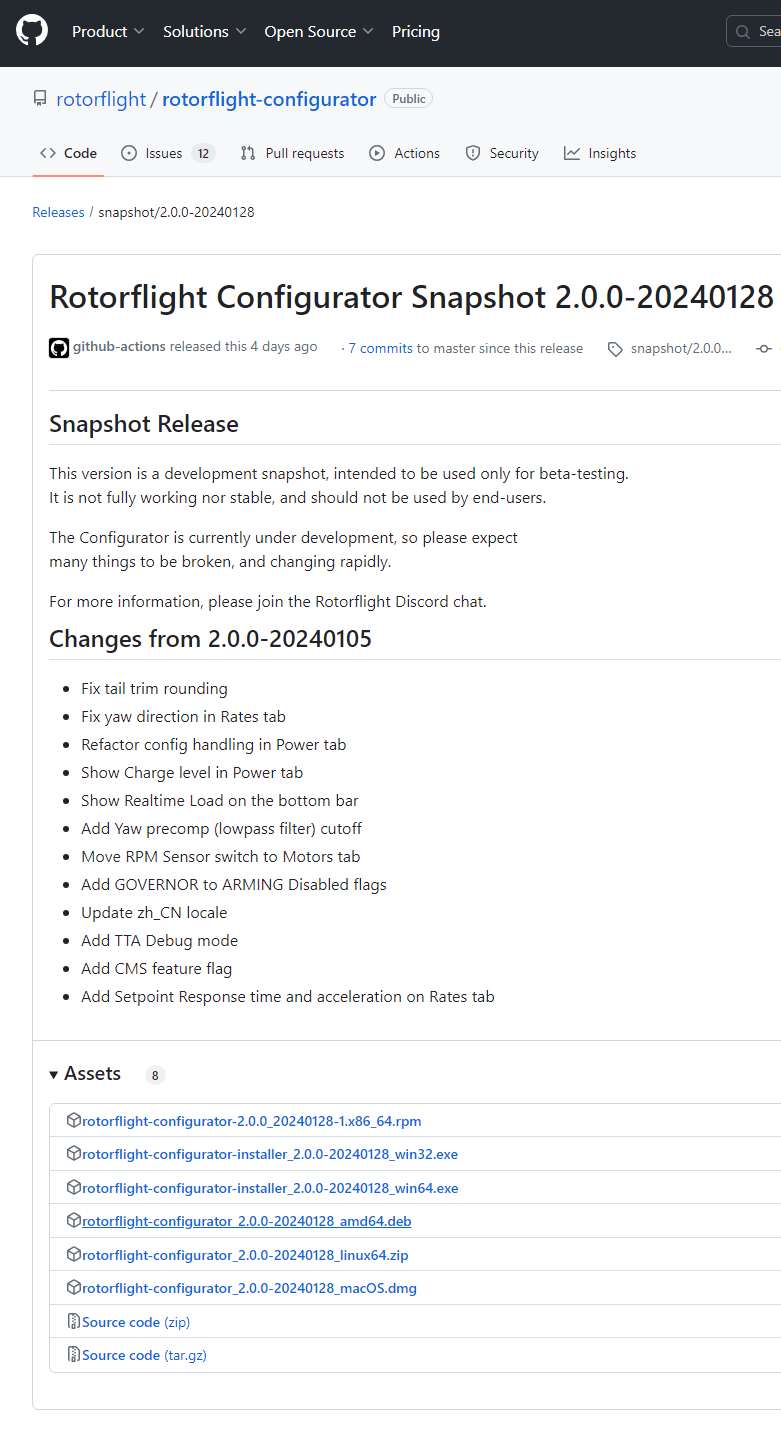

Product page showed, "[Firmware preloaded in factory] rotorflight_4.3.0_MATEKG474HELI.hex (built from RF2 devel branch of Nov.1). Load firmware (local) –> Flash firmware." so loading a configurator that pre-dates Nov 1, 2023 was the only way to connect and access the board. After attempting to install the latest [FAILED], then the proceeding month after 11/1/2023 [FAILED], I opted for the snapshot just before (10/18/2023) - Configurator version: 2.0.0-20231018 (rotorflight-configurator-installer_2.0.0-20231018_win64.exe) and it was able to link up.
