The DYS F4 V2 Pro is a flight controller with high performance, is designed for FPV hobbyists. Not only do they combine a PDB board together with flight control, but also an integrated OSD, current meter, voltmeter and built-in high power BEC etc functions.
DYS F4 PRO V2 flight control can meet all the functions you need include FPV racer, aerobatic flight and aerial photograph.
Specification:
- Betaflight “DYS F4 PRO” firmware
- STM32F405 master with higher refresh rate and more function ports
- 5V 3A BEC output
- 9V 1.2A BEC output
- 3.3V 0.3A BEC output
- Compatible all split-type escs, connect with DYS 4-in-1 esc (F20A or F30A) with flexible flat cable
- Support BF setting software to flash and debug OSD
- Integrated current sensor to monitor the power consumption etc in real time
- Use remote control to view flight control parameter through OSD
- Support SAMRT AUDIO, adjust the VTX by OSD

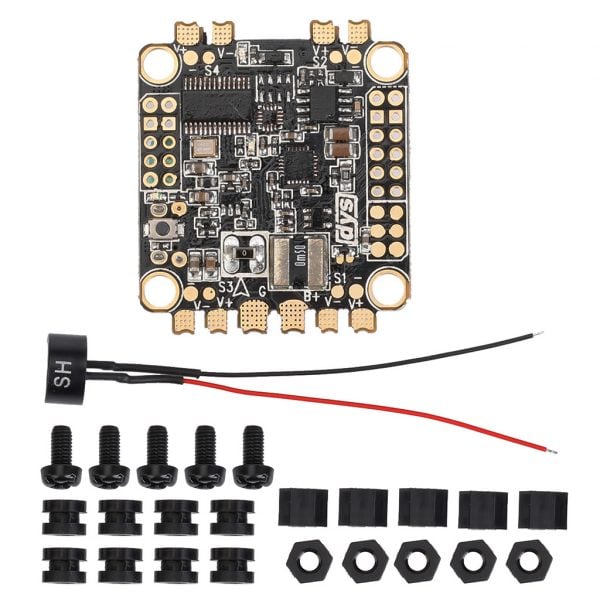

- Comes with heat resistance damping ball to upgrade the stability and operation
- 3-6s lipo input, integrated PDB, max withstand current 160A
- Net weight 10.5g, exclude the cable
- The refresh rate of PID and gyro up to 8K
Data

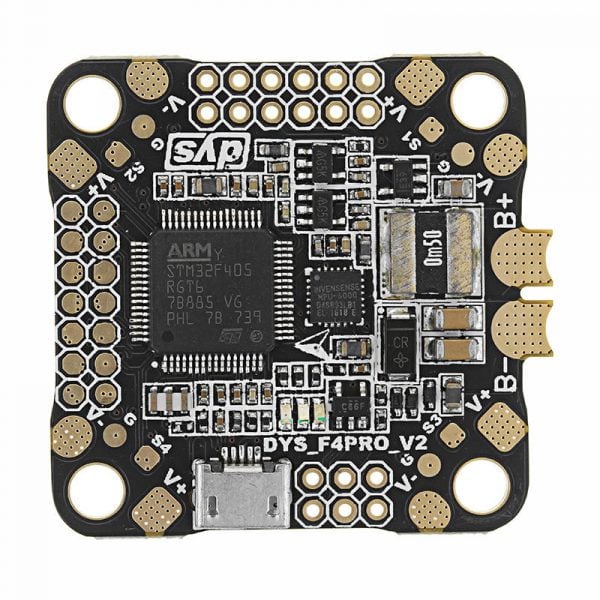

- * Whole size: L 38mmX W 38mm, hole distance 30.5X30.5mm
- * Six-layer PCB board and 3OZ copper to enhance the over-current and heat dissipation
- * PDB board with reverse high voltage protection circuit
- – MCU: STM32F405 GRT6
- – IMU: MPU-6000
- – OSD: AT7456E
- – FLASH: 8M memory
- – Current sensor: 0-200A
- – Integrated reverse high voltage protection circuit
- – Integrated circuit protection to USB port
- – 3.3V LDO to power on internal circuit
- – 9V BEC: 1.2A
- – 5V BEC: 3A/ one-way output to avoid external interference
- – When use with 4-in-1 esc, plug in the battery to supply the flight control instead of BEC.
Connection

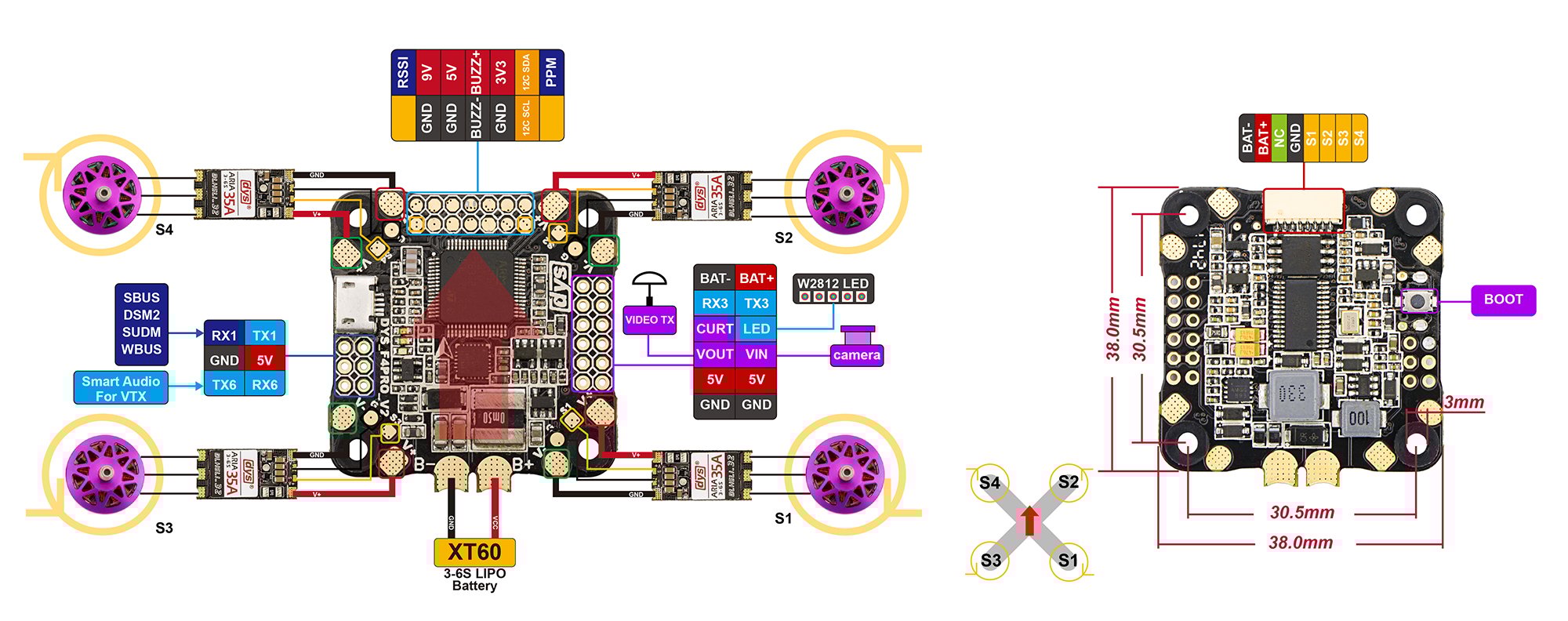

- DYS F4 PRO V2 flight control wiring diagram
- V+ V- : For esc power cable
- S1-S6：For GND of the corresponding esc signal cable
- BOOT: BOOT button ( for firmware flash)
- 5V: 3A output, can connect with VTX, receiver, lens etc 5V power device at the same time
- 9V：1.5A output, can connect with wide voltage device, such as 7-24V power VTX etc.
- 3.3V：Power supply for DSMX etc 3.3V power device
- GND: Negative
- Vout: Video output for VTX image signal cable
- Vin： Video input for camera signal cable
- LED: Programmable LED signal cable output
- RX1: For sbus etc receiver
- PPM：For PPM receiver signal pad
- USart6 tx：Smart Audio set the VTX function( The VTX should support to use Smart Audio function)
- BAT+/BAT-: Battery voltage
- Buzz-、Buzz+: Wiring for buzzer
- Installation with DYS 4-in-1 esc (optional)
- DYS F4 PRO V2 flight control plus f30a esc
- Connect DYS F20A or F30A with flexible flat cable, no need to solder
Note
* Please mount the mini F4 with the 4-in-1 esc as pic shows. Be attention that do avoid damage the socket
While using with 4-in-1 esc
* Please solder the battery power cable with esc power cable, do not connect with battery
* The current meter will be no use when use with 4-in-1 esc
* With voltage detection for battery
Caution
* Please be attention to below attentions, otherwise your flight control will work improperly or damage.
* Please be always attention for the polarity. Double check before power on.
* Please keep the power off while plug or pull or any connection.
* Do not short the 5V or battery port, otherwise the flight control will be burnt
* After finished assemble, please check carefully and clean the residual solder splash to avoid short the components.
* Please mount the damping ball on the flight control (Equipped with accessory bag).
* If connect with 4-in-1 esc, please ensure the installation connect properly. Please do not force to plug or pull.
